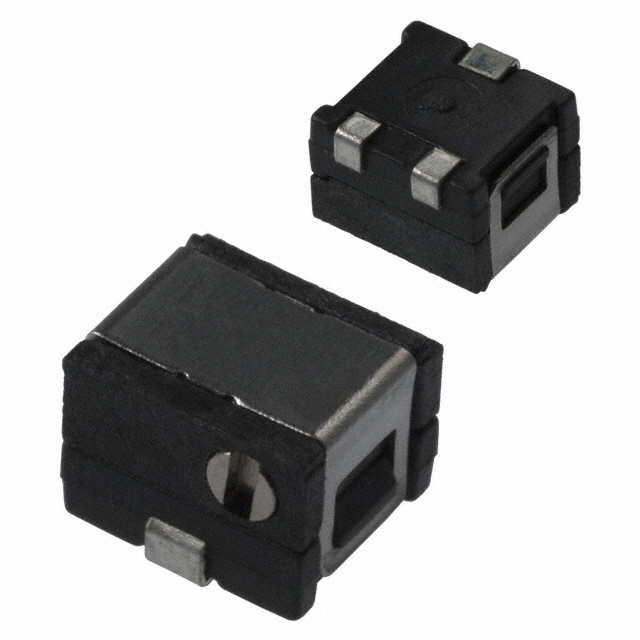

TRIMMER 200OHM 0.25W J LEAD SIDE
All alternatives
View full reportTechnical parameters
Key specs
Resistance200 Ω
Tolerance10 %
Power250 mWMax
Turns12
| Power | |
|---|---|
| Power (Watts) | 0.25W, 1/4W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Size / Dimension | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
| Temperature Coefficient | ±100ppm/°C |
| Other | |
| Adjustment Type | Side Adjustment |
| Mfr | Nidec Components Corporation |
| Number of Turns | 12 |
| Product Status | Obsolete |
| Resistance | 200 Ohms |
| Resistive Material | Cermet |
| Series | SM4 |
| Termination Style | J Lead |
| Tolerance | ±10% |
