Littelfuse Inc.United States

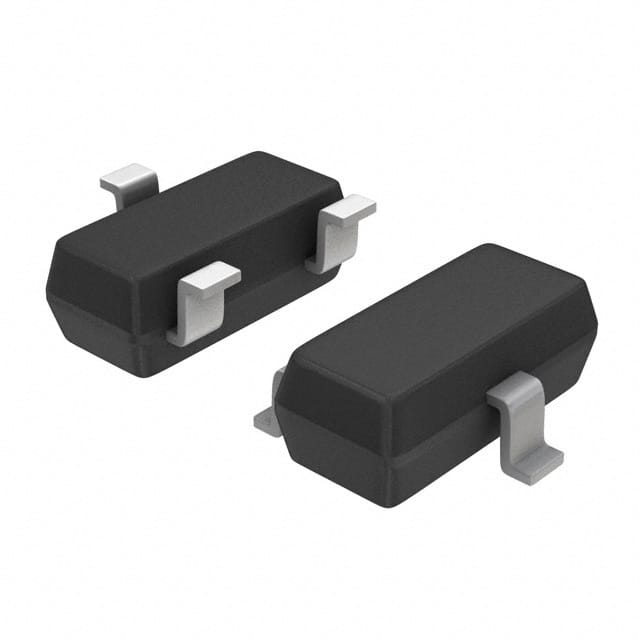

TVS DIODE 24VWM 50VC SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage24 V
Breakdown voltage26.7 V
Clamping voltage50 VMax
Peak pulse power500 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 2 |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 500W |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 50V |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Other | |
| Applications | Automotive, CAN |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | Automotive, AEC-Q101, SM24CANB, SPA® |
| Type | Zener |
