onsemiUnited States

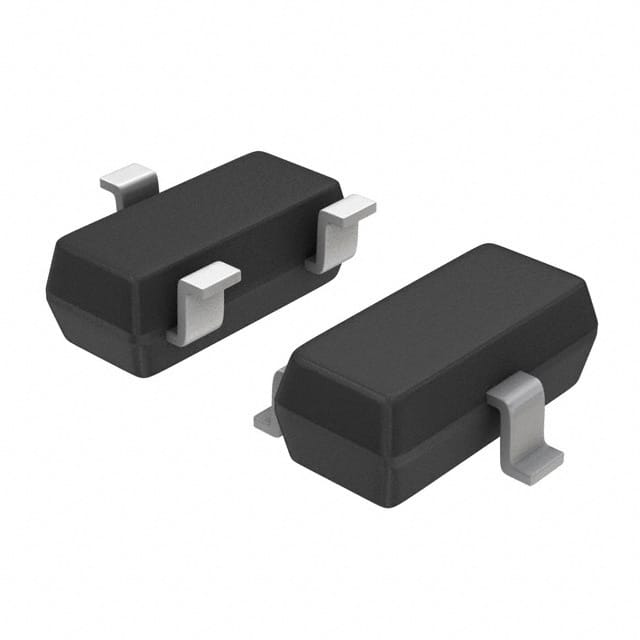

TVS DIODE 5VWM 11VC SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage6 V
Clamping voltage11 VMax
Peak pulse power300 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 300W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Voltage - Reverse Standoff (Typ) | 5V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 3.5pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Applications | Automotive |
| Base Product Number | SL05 |
| Mfr | onsemi |
| Product Status | Active |
| Series | Automotive, AEC-Q101 |
| Type | Zener |
