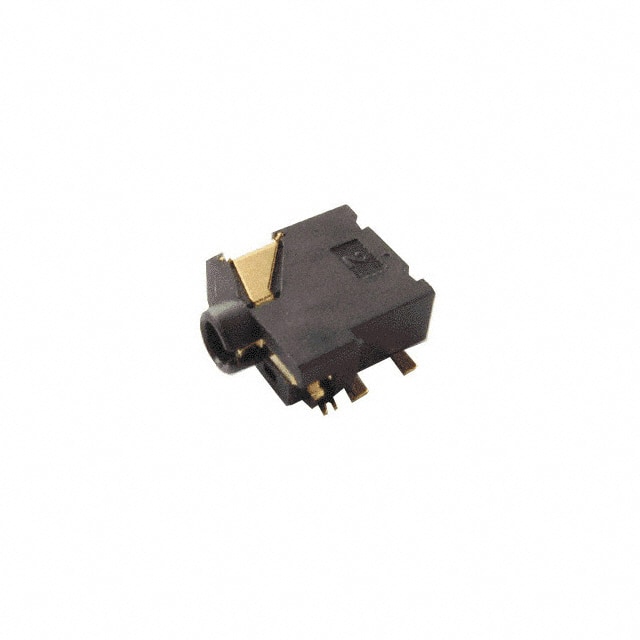

CONN JACK 4COND 2.5MM SMD R/A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 300 mA |
| Voltage - Rated | 16VDC |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.102" (2.60mm) |
| Base Product Number | SJ-42 |
| Body Color | Black |
| Body Material | - |
| Cable Opening | - |
| Connector Type | Phone Jack |
| Contact Material | Brass; Copper Alloy |
| Contact Material - Plating | Gold |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polyamide (PA), Nylon |
| Includes | - |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Two Switches |
| Mating Length/Depth | 0.433" (11.00mm) |
| Mfr | CUI Devices |
| Number of Positions/Contacts | 4 Conductors, 6 Contacts |
| Product Status | Obsolete |
| Series | SJ |
| Shielding | Unshielded |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Termination | Solder |
