View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1 A |
| Voltage - Rated | 12VDC |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -25°C ~ 85°C |
| Panel Hole Size | 0.236" (5.99mm) |
| Thread Size | M6 |
| Other | |
| Actual Diameter | 0.142" (3.60mm) |

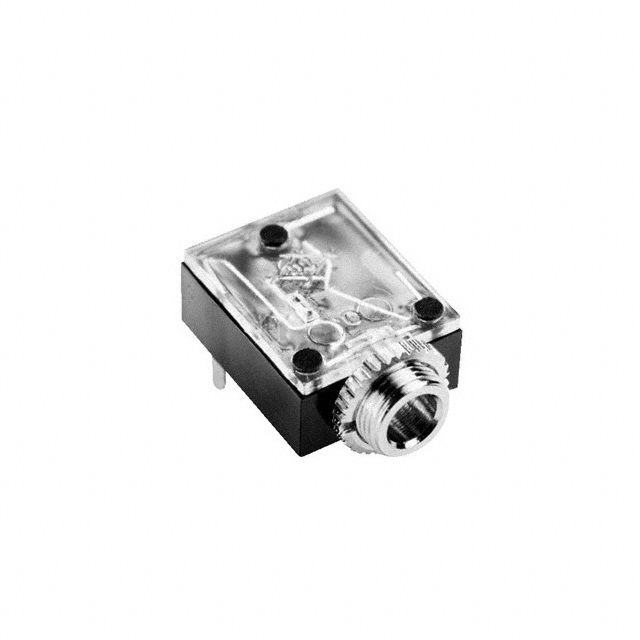

| Base Product Number | SJ-35 |
| Body Color | Silver, Black |
| Body Material | - |
| Cable Opening | - |
| Connector Type | Phone Jack |
| Contact Material | Brass; Copper Alloy |
| Contact Material - Plating | Silver |
| Features | Thread Lock |
| Gender | Female |
| Housing Material | Polyoxymethylene (POM) |
| Includes | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Two Switches |
| Mating Length/Depth | - |
| Mfr | Same Sky |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Packaging | - |
| Part Status | Obsolete |
| Series | SJ |
| Shielding | Unshielded |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Termination | Solder Eyelet(s) |
