Vishay SiliconixUnited States

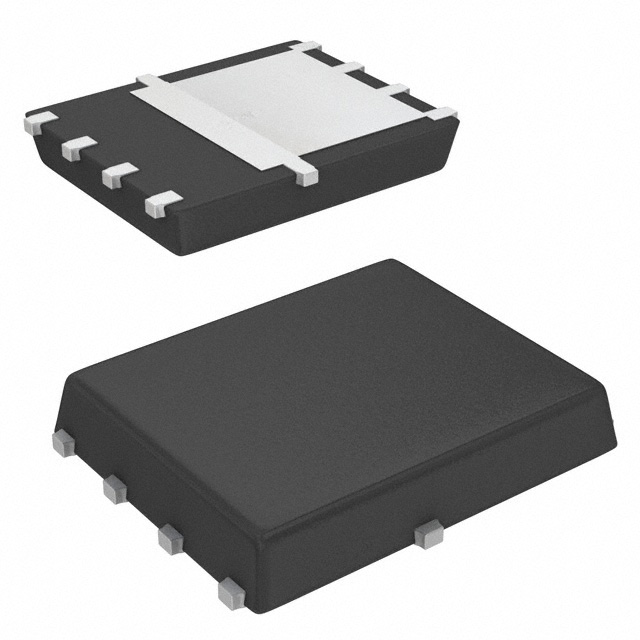

MOSFET N-CH 30V 20A PPAK SO-8
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage30 V
Continuous drain current20 A
On-resistance12 mΩMax · 13.8A
Gate threshold voltage2.5 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 3.9W (Ta), 29.8W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | PowerPAK® SO-8 |
| Supplier Device Package | PowerPAK® SO-8 |
| Other | |
| Base Product Number | SIR472 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 820 pF @ 15 V |
| Mfr | Vishay Siliconix |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 13.8A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
