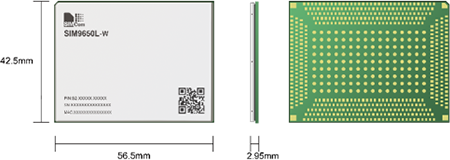

SIM9650L-W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Supply Voltage | 3.5V ~ 4.4V |
| Environment and package | |
| Dimensions | 42.5*56.5*2.95(mm) |
| Firmware Upgrade | USB/OTA/TF card |
| Temperature Range | -35℃ ~ +75℃ |
| Other | |
| ADC | *4 |
| Antenna | Wi-Fi/BT |
| Audio | Requires external Codec chip |
| BT | BT 5.2 |
| Charge | QC4.0 |
| Form Factor | LGA |
| GPIO | ≥*35 |
| I2C | *16 |
| I2S | *5 |
| Memory | 64GB UFS + 4GB LPDDR4x 64GB UFS + 6GB LPDDR4x 128GB UFS + 8GB LPDDR4X |
| Operating System | Android 14/Linux |
| PCIe | *1,2-lane PCIe Gen 3,support NVMe |
| RTC | Support |
| SPI | *10 |
| UART | *2 (Supports HD flow control MAX Mbps) |
| UIM Card | *2, single card(1.8V/2.95V) |
| USB0 | USB 3.1 Type-C, compatible USB 2.0，support DisplayPort 1.4 and USB & DP simultaneous; |
| USB1&2&3 | support USB 2.0, Only master mode. |
| USB Drive | Win7/Win8/Win10 |
| Weight | Approx. 17g |
| WLAN | WIFI 6E(2.4G/5G, 2x2 MU MIMO, 802.11 a/b/g/n/ac/ax) |
