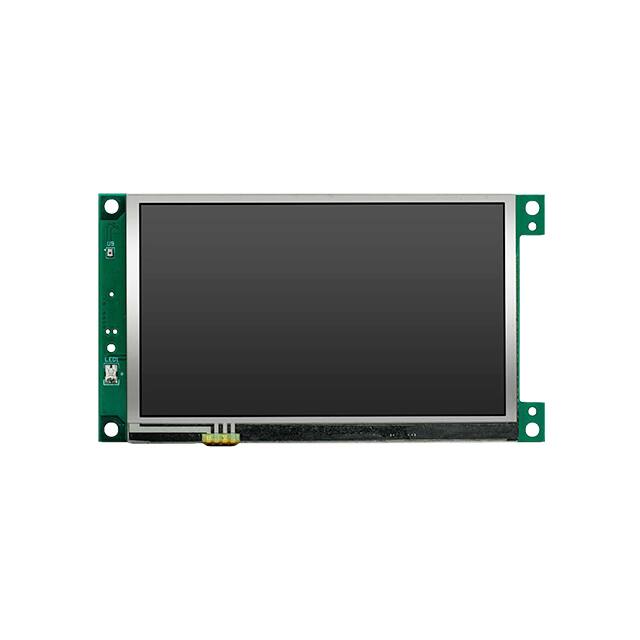

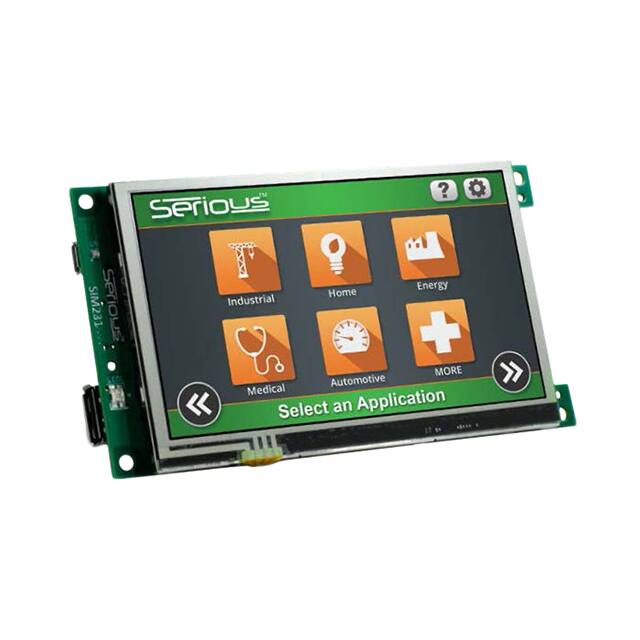

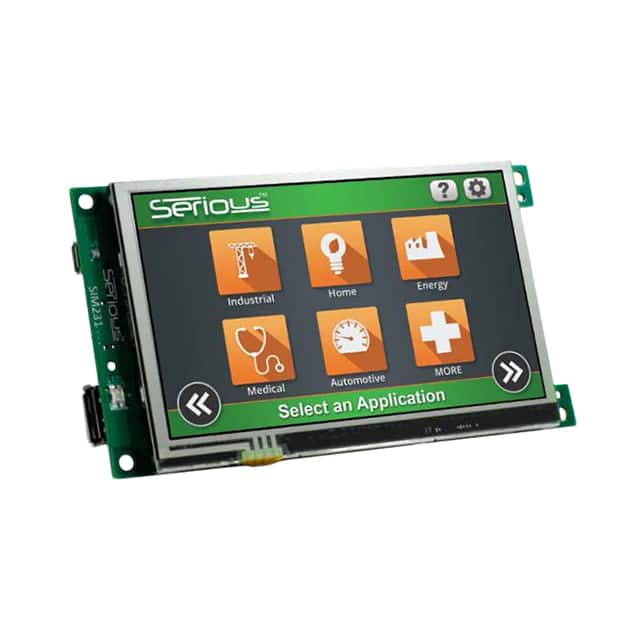

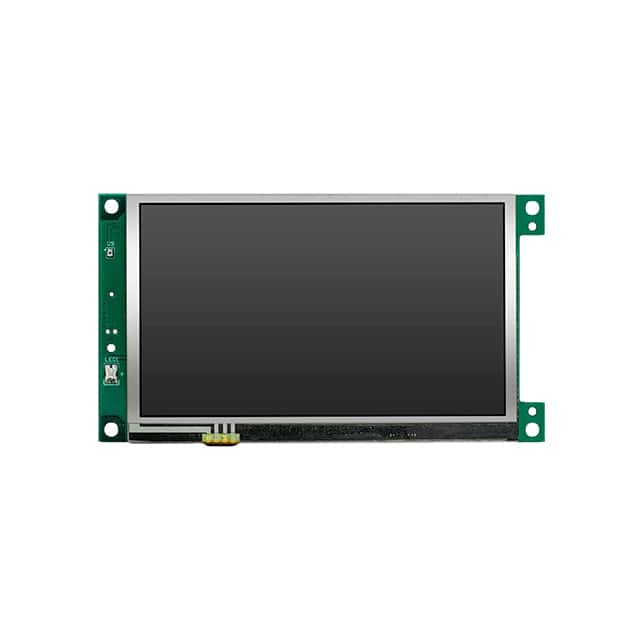

LCD MODULE 4.3" 480X272X24BPP MV
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Diagonal Screen Size | 4.3" (109.22mm) |
| Dot Size | - |
| Package | Box |
| Other | |
| Background Color | - |
| Backlight | LED - White |
| Base Product Number | SIM231 |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch | 0.20mm W x 0.20mm H |
| Dot Pixels | 480 x 272 |
| Graphics Color | Red, Green, Blue (RGB) |
| Interface | I²C, SPI, UART |
| Mfr | E2IP Technologies Inc. |
| Product Status | Obsolete |
| Series | SIM231 |
| Touchscreen | Resistive |
| Viewing Area | 97.64mm W x 56.46mm H |
