Vishay SiliconixUnited States

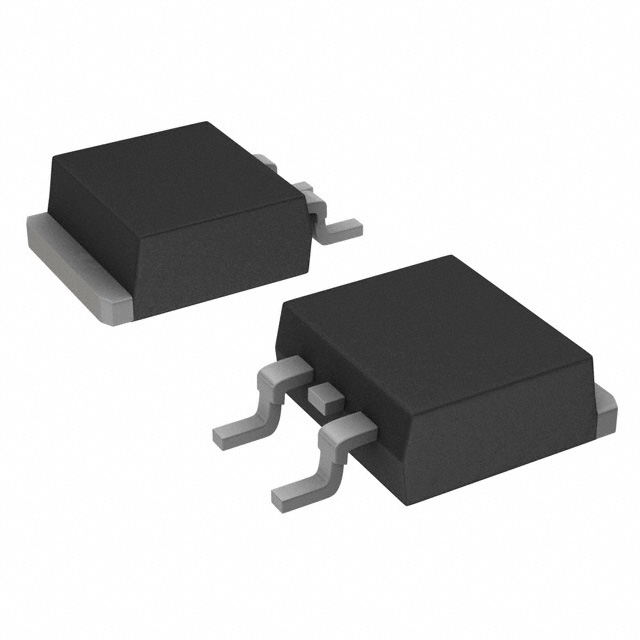

MOSFET N-CH 620V 6A TO252AA
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage620 V
Continuous drain current6 A
On-resistance900 mΩMax · 3A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drain to Source Voltage (Vdss) | 620 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 78W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
| Other | |
| Base Product Number | SIHD6 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 578 pF @ 100 V |
| Mfr | Vishay Siliconix |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 3A, 10V |
| Series | E |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
