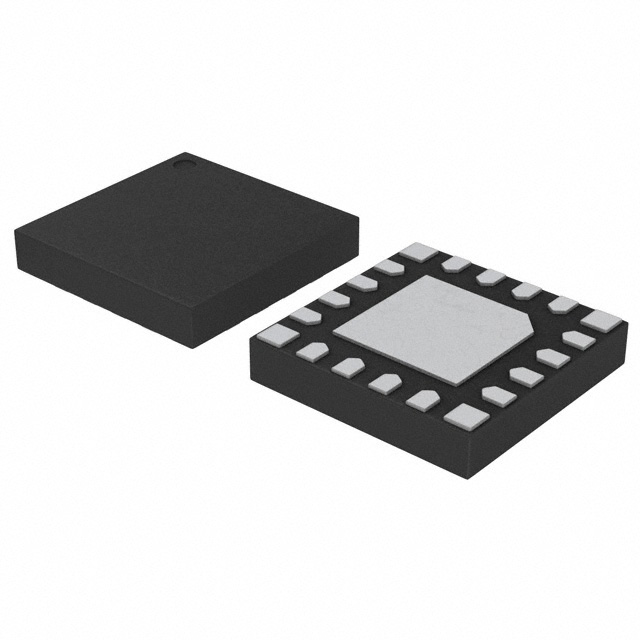

Skyworks Solutions Inc.United States
RF RX AM/FM 153KHZ-279KHZ 20QFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 19.9mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| AC and DC characteristics | |
| Frequency | 153kHz ~ 279kHz, 520kHz ~ 1.71MHz, 2.3MHz ~ 21.85MHz, 64MHz ~ 108MHz |
| Environment and package | |
| Memory Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~85°C |
| Package | Tray |
| Package / Case | 20-UFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) |
| Other | |
| Antenna Connector | PCB, Surface Mount |
| Applications | General Purpose |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | - |
| Features | RSSI Equipped |
| Mfr | Skyworks Solutions Inc. |
| Modulation or Protocol | AM, FM, LW-SW, WB |
| Product Status | Obsolete |
| Sensitivity | - |
| Series | - |
