Amgis, LLCUnited States

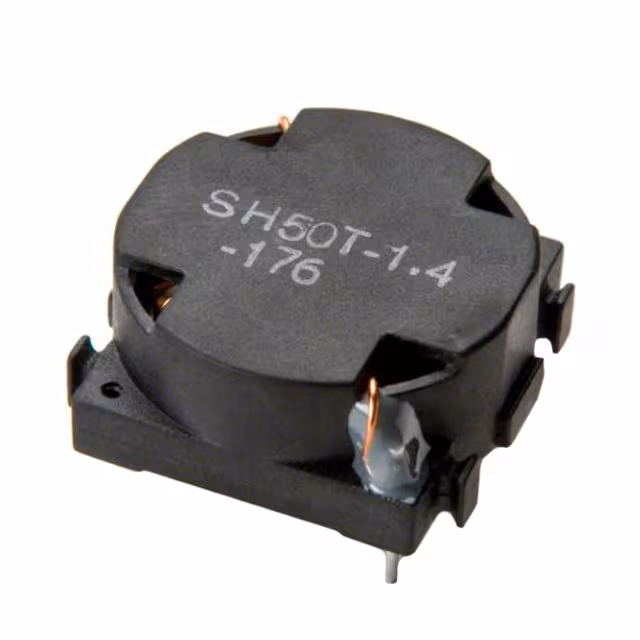

FIXED IND 680UH 850MA 1.25OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance680 µH
Rated current850 mAMax
DC resistance1.25 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 10 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension | 0.689" L x 0.669" W (17.50mm x 17.00mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 1.25Ohm Max |
| Inductance | 680 µH |
| Material - Core | Iron Powder |
| Mfr | Amgis, LLC |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | SH50 |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Toroidal |
