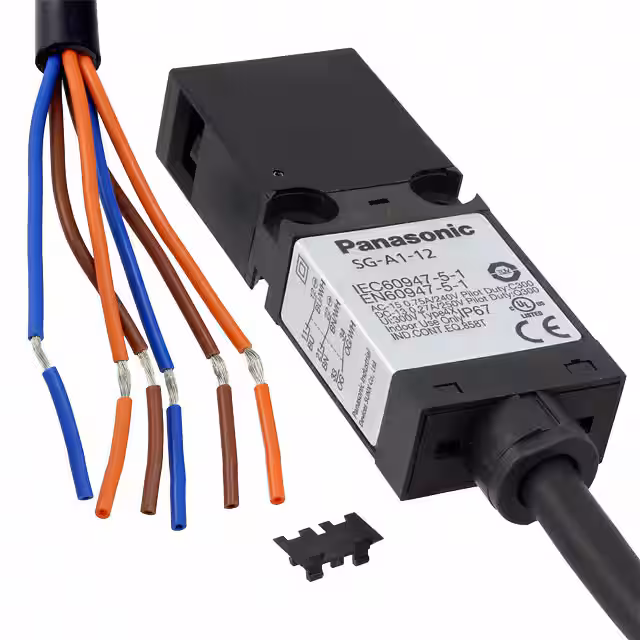

SG-A1-12-5
PanasonicJapan

SG-A1-12-5

ActiveInterlock Switches

SWITCH SAFETY DPST 2.5A 125V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)2.5A (AC/DC)
Voltage Rating125VAC, 30VDC
Voltage - Supply-
Environment and package
Conduit Thread Size-
Operating Temperature-25°C~70°C
PackageBulk
Other
Actuator TypePanel Disconnect
Approval AgencyCE, cULus, TUV
Base Product NumberSG-A1-12
CircuitDPST-NC + SPST-NO
FeaturesCable Length 5m
Holding Force-
Ingress ProtectionIP67 - Dust Tight, Waterproof
MfrPanasonic Industrial Automation Sales
Must Operate-
Must Release-
Product StatusActive
SeriesSG-A1
Termination StyleCable Leads
TypeNon-Locking

Documents

No documents are linked to this part yet.
