onsemiUnited States

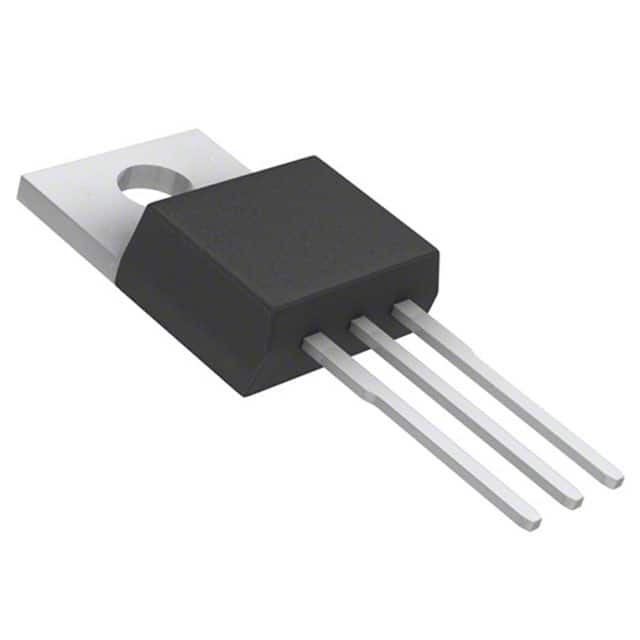

MOSFET P-CH 100V 10.5A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage100 V
Continuous drain current10.5 A
On-resistance300 mΩMax · 5.3A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Tc) |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 66W (Tc) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | SFP953 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1035 pF @ 25 V |
| Mfr | onsemi |
| Product Status | Last Time Buy |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 5.3A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
