Cornell Dubilier Electronics (CDE)United States

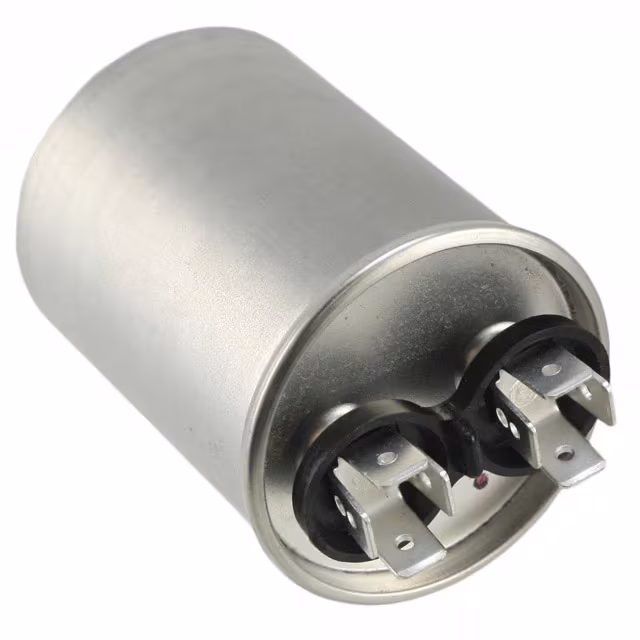

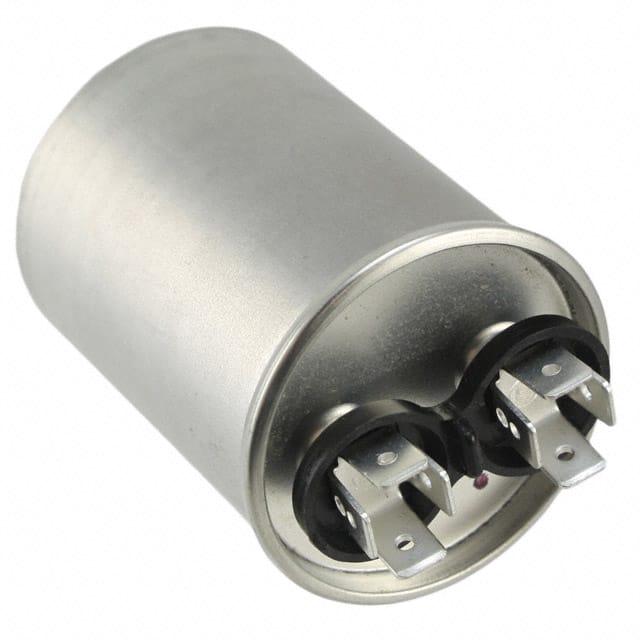

CAP FILM 6UF 10% 370VAC RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance6 µF
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 370V |
| Voltage Rating - DC | - |
| Environment and package | |
| Height - Seated (Max) | 2.500" (63.50mm) |
| Mounting Type | Chassis Mount, Requires Holder/Bracket |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 1.870" Dia (47.50mm), Lip |
| Other | |
| Applications | Motor Run |
| Capacitance | 6 µF |
| Dielectric Material | Polypropylene (PP), Metallized |
| Features | - |
| Lead Spacing | 0.810" (20.57mm) |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Obsolete |
| Ratings | - |
| Series | SF |
| Termination | Quick Connect, Disconnect |
| Tolerance | ±10% |
