Knowles SyferUnited States

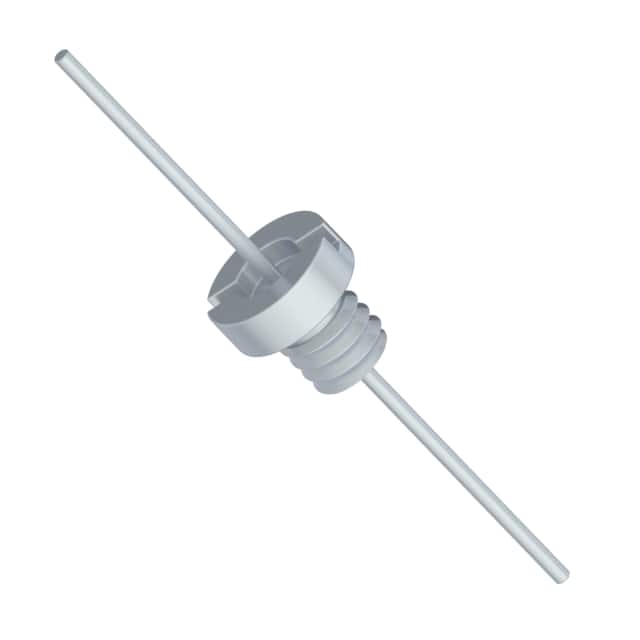

CAP FEEDTHRU 0.068UF 500V AXIAL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 15 A |
| Voltage - Rated | 500V |
| Environment and package | |
| Height (Max) | - |
| Mounting Type | - |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | Axial, Bushing |
| Size / Dimension | 0.386" Dia x 0.370" L (9.80mm x 9.40mm) |
| Temperature Coefficient | X7R |
| Thread Size | 1/4-28 |
| Other | |
| Capacitance | 0.068 µF |
| DC Resistance (DCR) (Max) | - |
| Insertion Loss | - |
| Mfr | Knowles Syfer |
| Product Status | Obsolete |
| Ratings | - |
| Series | SFJE |
| Tolerance | ±20% |
Documents
No documents are linked to this part yet.
