View full reportTechnical parameters
Key specs
ColorInfrared
Wavelength860 nm
Forward voltage2.9 VTyp
Test current1 A
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 1A |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 3-SMD, No Lead |
| Other | |

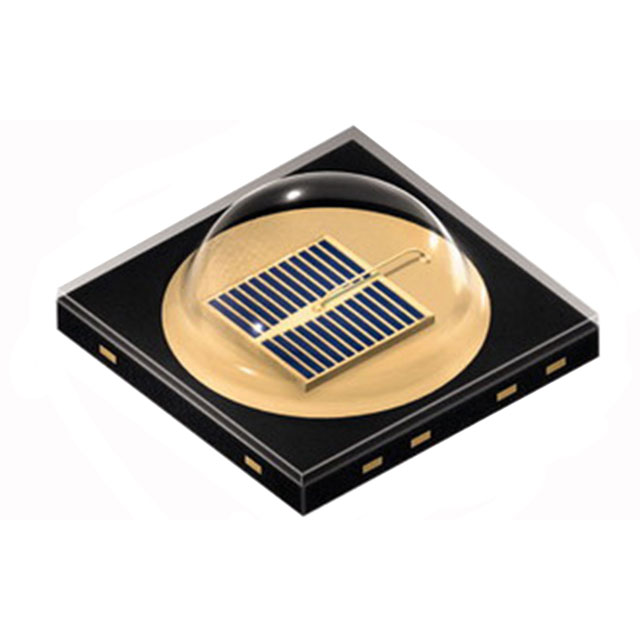

| Base Product Number | SFH4716 |
| Manufacturer | ams-OSRAM USA INC. |
| Orientation | Top View |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Radiant Intensity (Ie) Min @ If | 225mW/sr @ 1A |
| Series | OSLON® Black |
| Type | Infrared (IR) |
| Viewing Angle | 150° |
| Wavelength | 860nm |
