OSRAM Opto (ams OSRAM)Germany

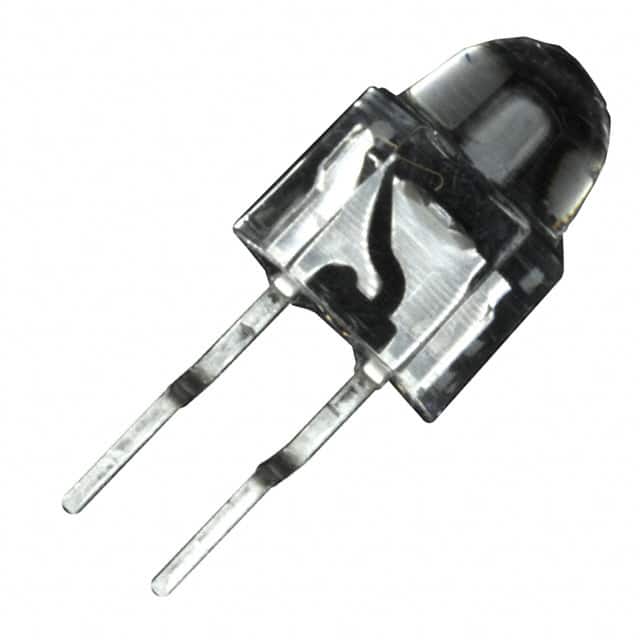

PHOTOTRANSISTOR NPN SMD RADIAL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 50 mA |
| Current - Dark (Id) (Max) | 200 nA |
| Power - Max | 150 mW |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Cut Tape (CT) |

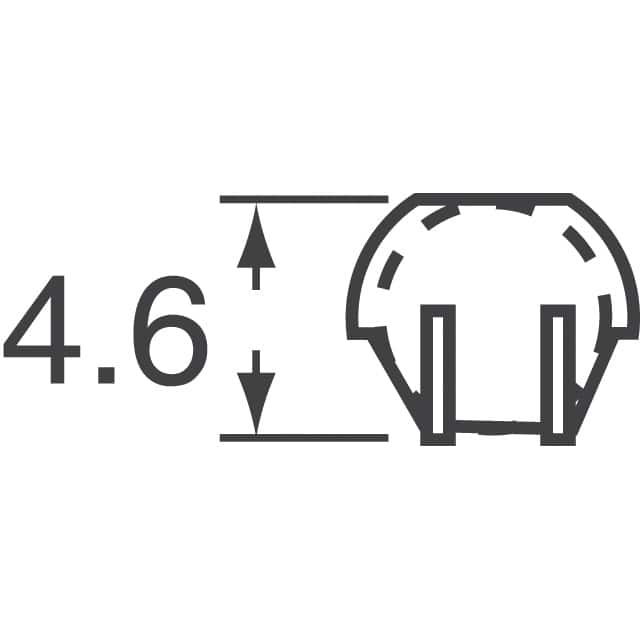

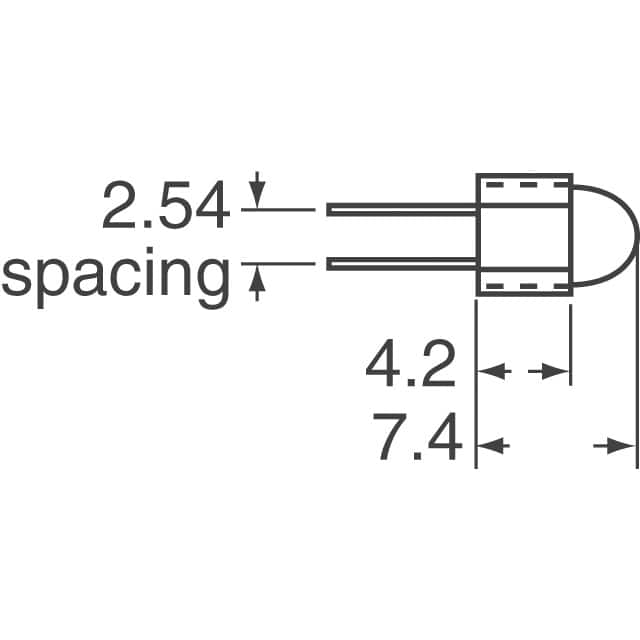

| Package / Case | Radial |
| Other | |
| Mfr | OSRAM Opto (ams OSRAM) |
| Orientation | Side View |
| Product Status | Obsolete |
| Series | - |
| Viewing Angle | 26° |
| Wavelength | 830nm |
