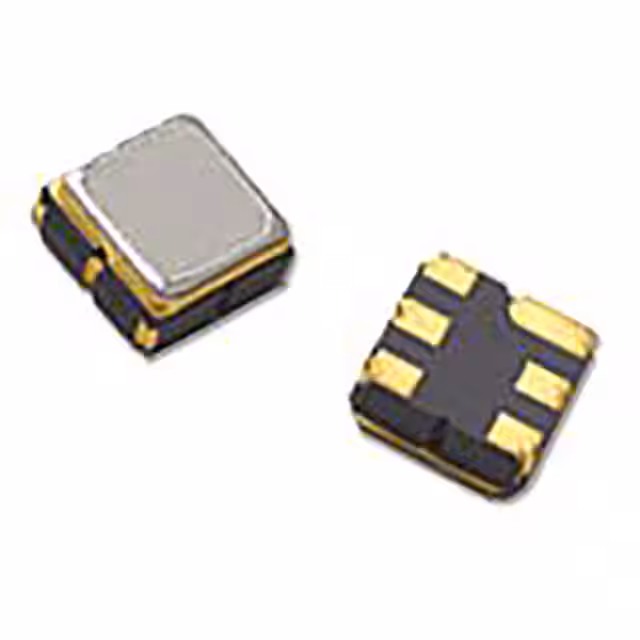

FILTER, SAW, 1570 MHZ, 6SMD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth | 80MHz |
| Frequency - Center | 1.57GHz |
| Environment and package | |
| Height (Max) | 0.055" (1.40mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Tape & Reel (TR); Bag |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SF2393 |
| Insertion Loss | 3.6dB |
| Mfr | RFMi |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Series | - |
