View full reportTechnical parameters
| Environment and package | |
|---|---|

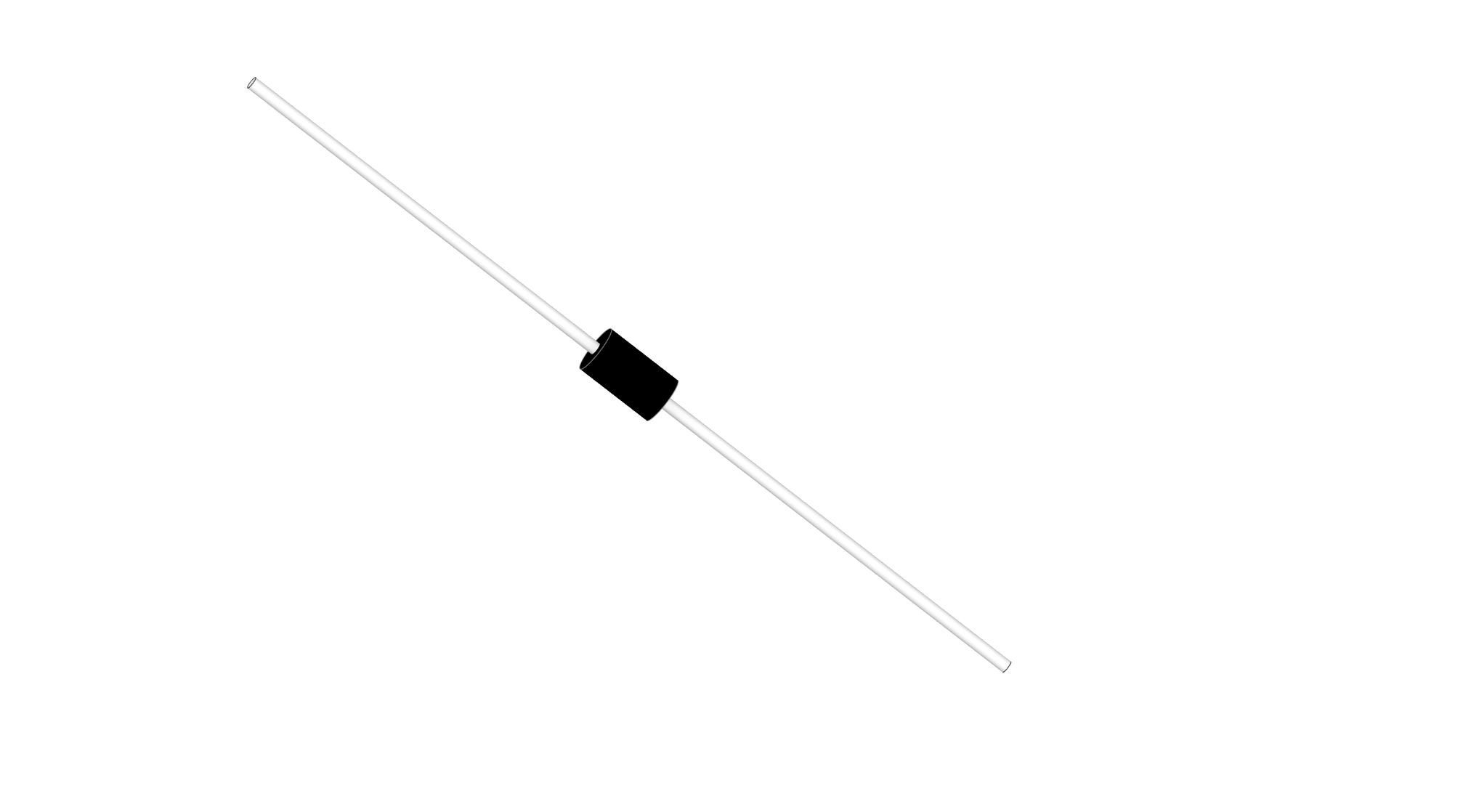

| Package | DO-41 |
| Other | |
| IFSM_Max(A) | 30 |
| Io_Max(A) | 1 |
| IR@25℃IR(uA) | 2.5 |
| Rated lo(A) | 1 |
| Status | Active |
| Tj（℃） | -55～+150 |
| Trr_Max(ns) | 35 |
| VF_Max(V) | 1.3 |
| VRM_Max (V) | 300 |
