Sunon FansTaiwan, China

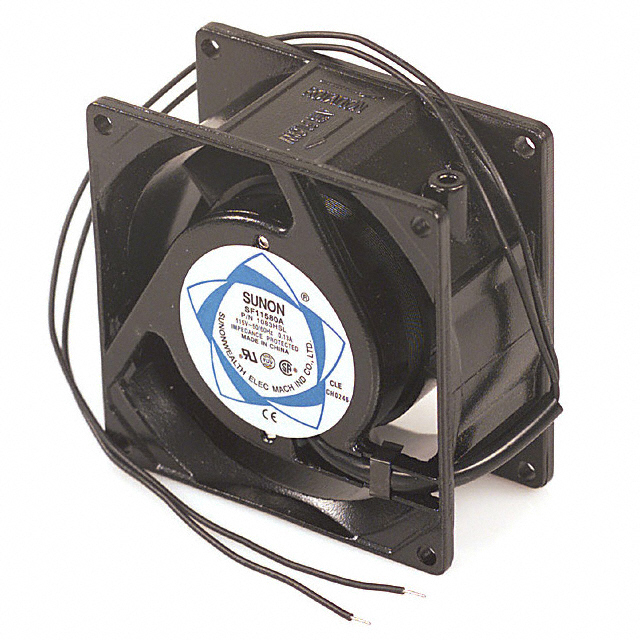

FAN AXIAL 80X38MM 115VAC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.130A |
| Power (Watts) | 12.00W |
| Voltage Range | 85 ~ 125VAC |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 35.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 30.0 CFM (0.840m³/min) |
| Approval Agency | CSA, UL |
| Bearing Type | Sleeve |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Mfr | Sunon Fans |
| Product Status | Obsolete |
| RPM | 2750 RPM |
| Series | SF |
| Static Pressure | 0.180 in H2O (44.8 Pa) |
| Termination | 2 Wire Leads |
| Weight | 0.75 lb (340.19 g) |
| Width | 38.00mm |
