Diodes IncorporatedUnited States

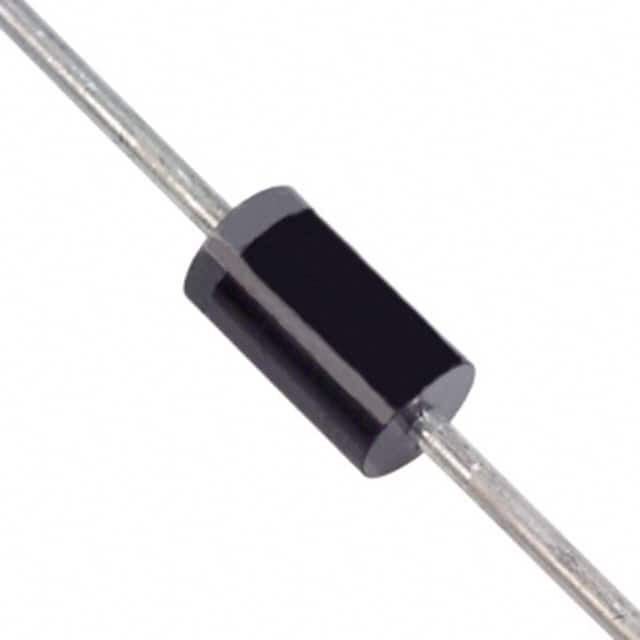

DIODE GEN PURP 50V 1A DO41
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage50 V
Average rectified current1 A
Forward voltage975 mVMax · 1 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 975 mV @ 1 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -65°C~175°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Other | |
| Base Product Number | SF11 |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Diodes Incorporated |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 35 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
