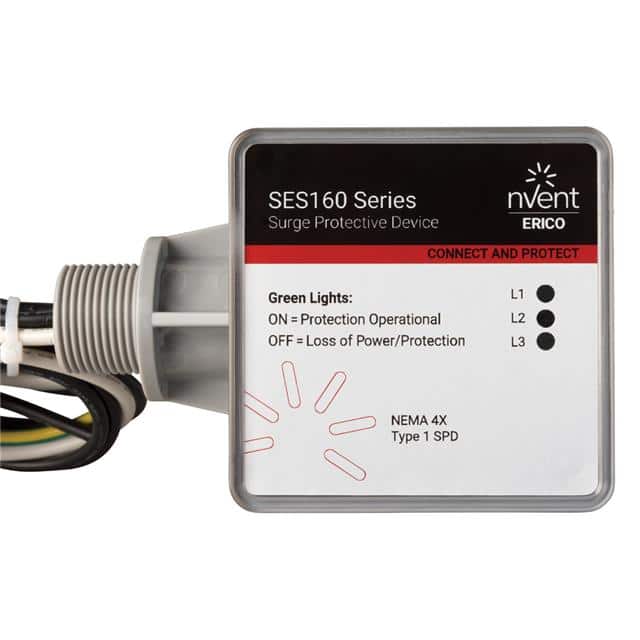

SES(B), 160 kA, 120 V Un, 1Ph 2W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Discharge (Max) (8/20µS) | 160 kA |
| Current - Discharge (Nom) (8/20µS) | 20 kA |
| Current - Short Circuit Rating (SCRR) | 200 kA |
| Voltage - Continuous Operating (Max) (MCOV) | 180V |
| Voltage - Protection Rating (VPR) | 700 V |
| Environment and package | |
| Mounting Type | Free Hanging |
| Operating Temperature | -40°C~85°C |
| Package | Retail Package |
| Other | |
| Approval Agency | cUL, UL |
| Features | - |
| Form | Base + Module |
| Mfr | nVent |
| Number of Poles | 1 |
| Product Status | Active |
| Series | SES160B |
| Type | - |
