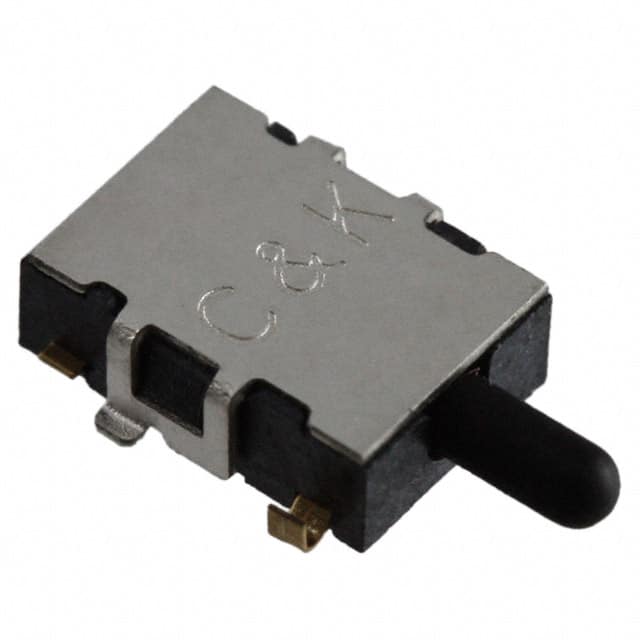

SWITCH DETECT SPST-NO 100MA 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 100mA (DC) |
| Voltage Rating - DC | 12 V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Other | |
| Actuator Type | Overtravel Plunger |
| Circuit | SPST-NO |
| Differential Travel | - |
| Electrical Life | 50,000 Cycles |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | 50,000 Cycles |
| Mfr | C&K |
| Operating Force | 75gf |
| Operating Position | - |
| Overtravel | 0.079" (2.0mm) |
| Pretravel | - |
| Product Status | Active |
| Release Force | - |
| Series | SDS |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
