CUI Inc.United States

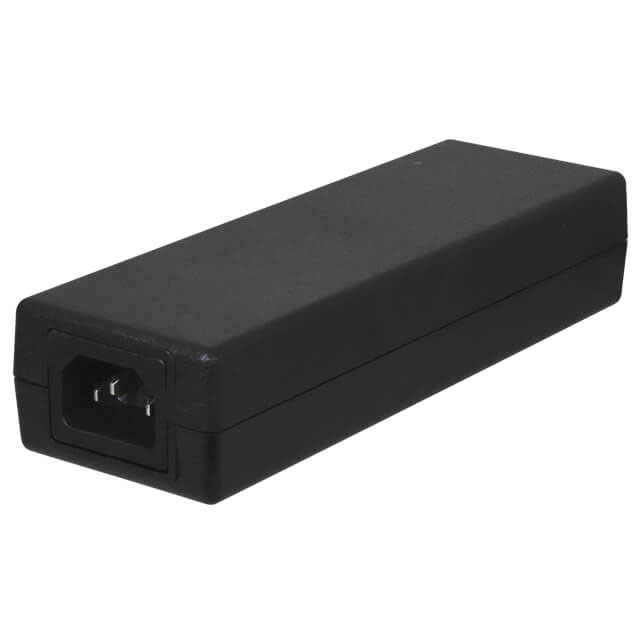

SDI200G-19-UC-P51
AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 19V 200W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage19 V
Output current10.5 AMax
Power200 WMax
| Power | |
|---|---|
| Current - Output (Max) | 10.5A |
| No Load Power Consumption | 210mW (Max) |
| Power (Watts) | 200 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 19V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | EN, FCC, PSE, UL |
| Base Product Number | SDI200 |
| Cord Length | 59" (1.50m) |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Manufacturer | CUI Inc. |
| Output Connector | Power DIN, 4 Pin |
| Packaging | Box |
| Part Status | Active |
| Polarization | - |
| Region Utilized | International |
| Series | GaN, SDI200G-U (200W) |
| Standard Number | 55024; 55032 Class B; 61000-3-2; 61000-3-3; 62368-1 |
