CUI Inc.United States

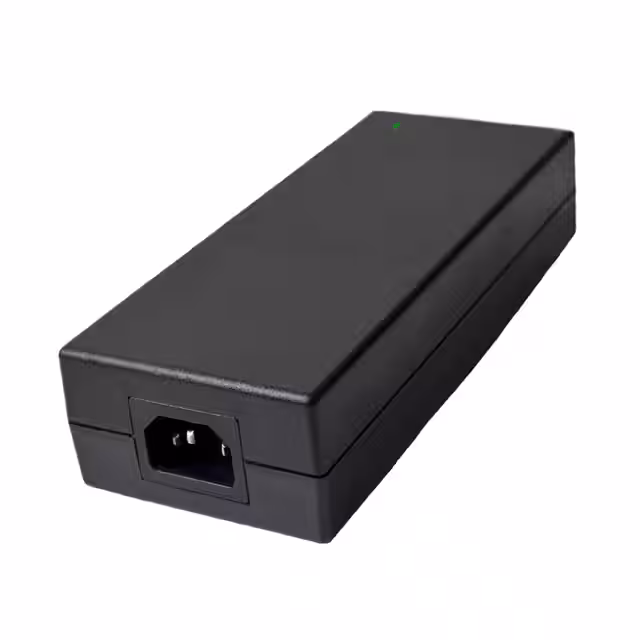

AC/DC DESKTOP ADAPTER 28V 150W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage28 V
Output current5.36 AMax
Power150 WMax
| Power | |
|---|---|
| Current - Output (Max) | 5.36A |
| No Load Power Consumption | 150mW (Max) |
| Power (Watts) | 150 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 28V |
| Environment and package | |
| Operating Temperature | -30°C~65°C |
| Package | Box |
| Size / Dimension | 7.09" L x 2.91" W x 1.61" H (180.0mm x 74.0mm x 41.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | EN, FCC, SIQ, TUV |
| Base Product Number | SDI150 |
| Cord Length | 48" (1.22m) |
| Efficiency | Level VI, CoC Tier 2 |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Mfr | CUI Inc. |
| Output Connector | Power DIN, 4 Pin |
| Polarization | - |
| Product Status | Obsolete |
| Region Utilized | International |
| Series | SDI150-U (150W) |
| Standard Number | 55011 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
