C&KUnited States
SWITCH SLIDE DIP SPST 25MA 24V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST
Current rating25 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Environment and package | |
| Height Above Board | 0.175" (4.45mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Base Product Number | SDA12H |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Electrical Life | 1,000 Cycles |
| Features | - |
| Length | 1.279" (32.50mm) |
| Mechanical Life | 1,000 Cycles |
| Mfr | C&K |
| Number of Positions | 12 |

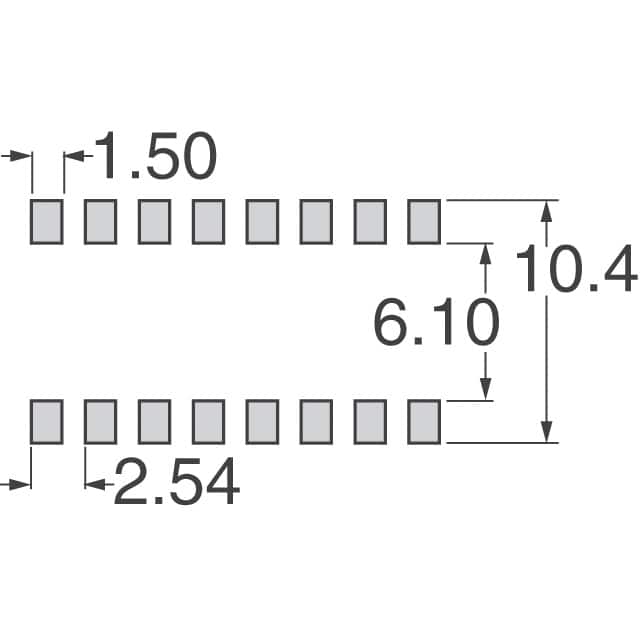

| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | SDA |
| Termination Style | Gull Wing |
| Washable | No |
