SD-SE-SDE-SCO

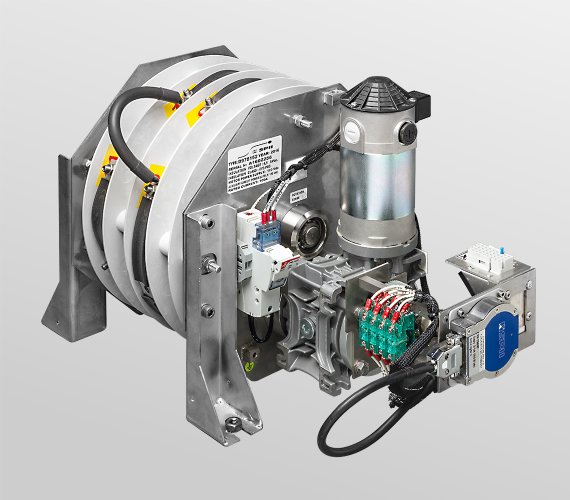

ActiveModular HV switch device for disconnecting, earthing, isolating and earthing or switching with up to 10 switching chambers for UIC voltages up to 5 kV DC.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Control voltage U S | Manual operation: — Linear motor: 24 V Gear motor: 110 V |
| Input voltage range to UIC 550 | 600 … 3,000 V AC, 16 2/3 … 50 Hz 600 … 3,000 V DC (5.000 V DC nach UIC550) |
| Environment and package | |
| Conv. thermal current I th | 500 A |
| Temperature range | – 25 °C … + 85 °C |
| Other | |
| Ingress protection rating, IEC 60529 | IP00 |
| Standards | EN 50124, IEC 60077, IEC 61373, UIC 550 |
