Rohm SemiconductorJapan

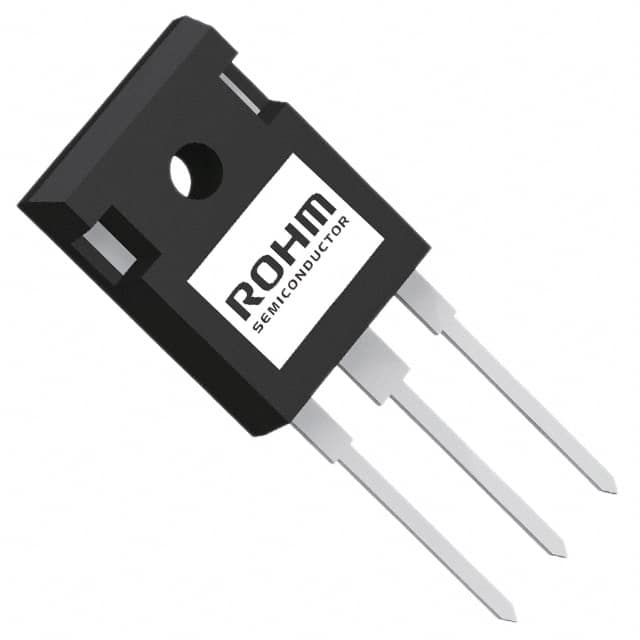

DIODE ARRAY SCHOTTKY 650V TO247
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10A (DC) |
| Current - Reverse Leakage @ Vr | 200 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 10 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | 175°C(Max) |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Other | |
| Base Product Number | SCS220 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Silicon Carbide Schottky |
| Mfr | Rohm Semiconductor |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 0 ns |
| Series | - |
| Speed | No Recovery Time > 500mA (Io) |
