Song Chuan(松川)China
5A general purpose Power Relay.; DPDT & 4PDT contact configurations.; AC & DC coil.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage6 ~ 120 V

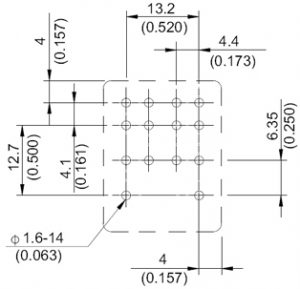

| Power | |
|---|---|
| Coil voltage | DC | 6 ~ 120V |
| Max. Allowable Contact current(A) | 5A |
| Power consumption | DC | 0.9W |
| Other | |
| 1. | SCL | — | Basic series designation |
| 2. | B | — | Double pole |
| 3. | P | — | PCB terminal |
| 4. | Blank | — | Without any special features |
| 5. | Blank | — | No special features |
| 6. | DPDT | — | Double pole double throw |
| 7. | Blank | — | Open type |
| 8. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | 12 ~ 240V |
| Contact and coil | 1500VAC |
| Contact circuits | 1500VAC |
| Contact configuration | 2C, 4C |
| Contact rating | Resistive load | 5A 250VAC, 5A 28VDC |
| Dielectric strength | Open contact | 500VAC |
| Electrical(Min.) | 1×105 |
| Life expectancy | Mechanical(Min.) | 1×107 |
| Outline (L×W×H) mm | 27.5 × 21.5 × 36 |
