SanRex CorporationJapan

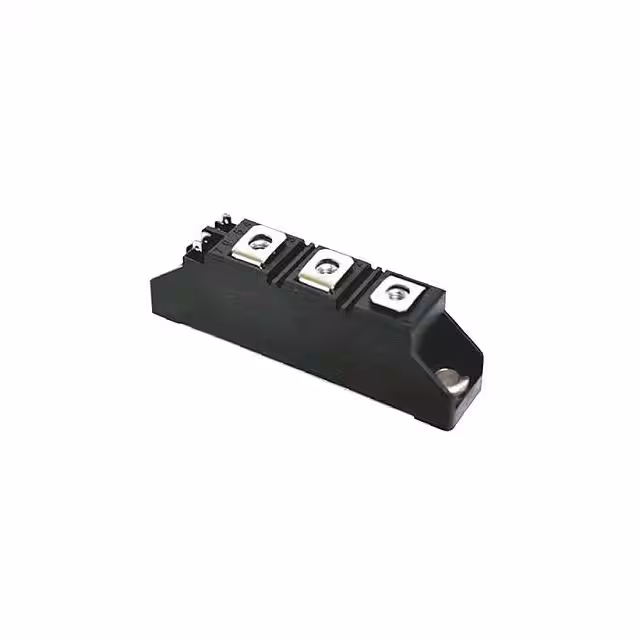

THYRISTOR MODULE 1600V 70A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1600A, 1750A |
| Current - On State (It (AV)) (Max) | 70 A |
| Current - On State (It (RMS)) (Max) | 110 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.6 kV |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~130°C(TJ) |
| Package | Tray |
| Package / Case | Module |
| Other | |
| Mfr | SanRex Corporation |
| Number of SCRs, Diodes | 2 SCRs |
| Product Status | Active |
| Series | - |
| Structure | Series Connection - All SCRs |
