Mallory Sonalert Products Inc.United States

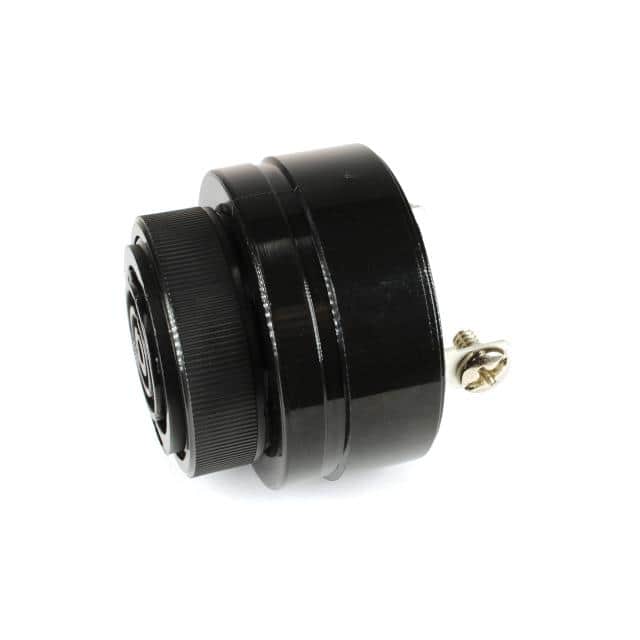

BUZZER PIEZO 42.85MM PNL MNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 6 ~ 22mA |
| Voltage Range | 30 ~ 120V |
| AC and DC characteristics | |
| Frequency | 2.9kHz |
| Environment and package | |
| Height - Seated (Max) | 2.459" (62.45mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | -30°C~65°C |
| Package | Bulk |
| Size / Dimension | 1.687" Dia (42.85mm) |
| Other | |
| Approval Agency | cUL |
| Driver Circuitry | Indicator, Internally Driven |
| Duration | 0.3 ~ 2 PPS |
| Input Type | AC |
| Mfr | Mallory Sonalert Products Inc. |
| Operating Mode | Chime |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | SC |
| Sound Pressure Level (SPL) | 68dB @ 30V, 61cm |
| Technology | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
