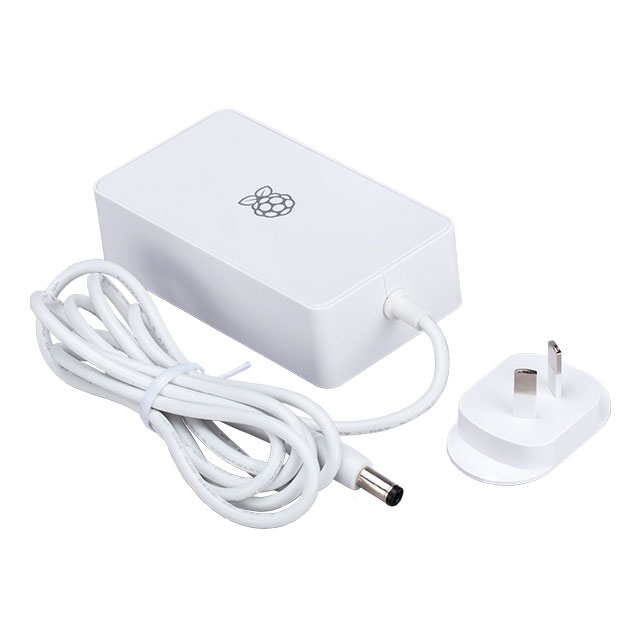

AC/DC WALL MOUNT ADAPTER 8V 48W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage96 ~ 264 V
Output voltage8 V
Output current6 AMax
Power48 WMax
| Power | |
|---|---|
| Current - Output (Max) | 6A |
| No Load Power Consumption | 100mW |
| Power (Watts) | 48 W |
| Voltage - Input | 96 ~ 264 VAC |
| Voltage - Output | 8V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Package | Bulk |
| Size / Dimension | 3.62" L x 2.01" W x 1.00" H (92.0mm x 51.0mm x 25.5mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Cord Length | 59" (1.50m) |
| Efficiency | 87.77% |
| Form | Wall Mount (Class II) |
| Input Connector | AS 3112 |
| Input Type | Cord (Sold Separately) |
| Mfr | Raspberry Pi |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Polarization | Positive Center |
| Product Status | Active |
| Region Utilized | International |
| Series | - |
| Standard Number | - |
| Weight | - |
