View full reportTechnical parameters
| Power | |
|---|---|
| Current - Test | 20mA |
| Power Dissipation (Max) | 75mW |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Environment and package | |
| Digit/Alpha Size | 0.80" (20.32mm) |
| Package / Case | 18-DIP (0.600", 15.24mm), 15 Leads |
| Size / Dimension | 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) |
| Other | |

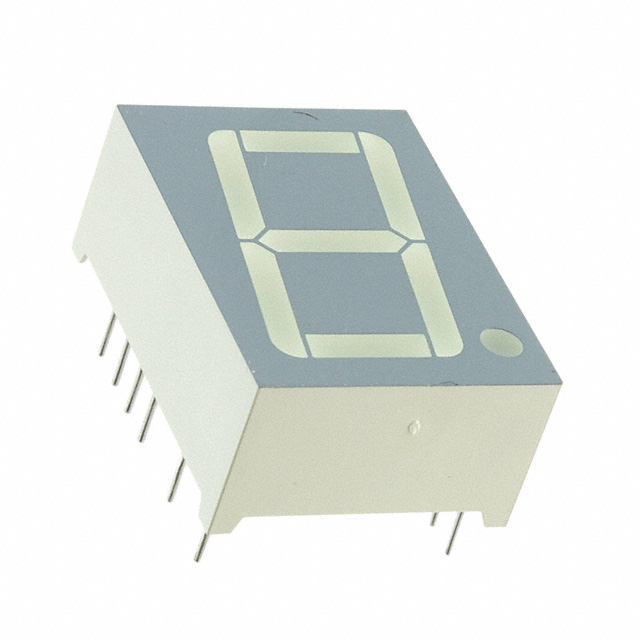

| Base Product Number | SA08-21 |
| Color | Red |
| Common Pin | Common Anode |
| Display Type | 7-Segment |
| Manufacturer | Kingbright |
| Millicandela Rating | 36mcd |
| Number of Characters | 1 |
| Packaging | Tube |
| Part Status | Obsolete |
| Series | - |
| Wavelength - Peak | 660nm |
