Diotec SemiconductorGermany

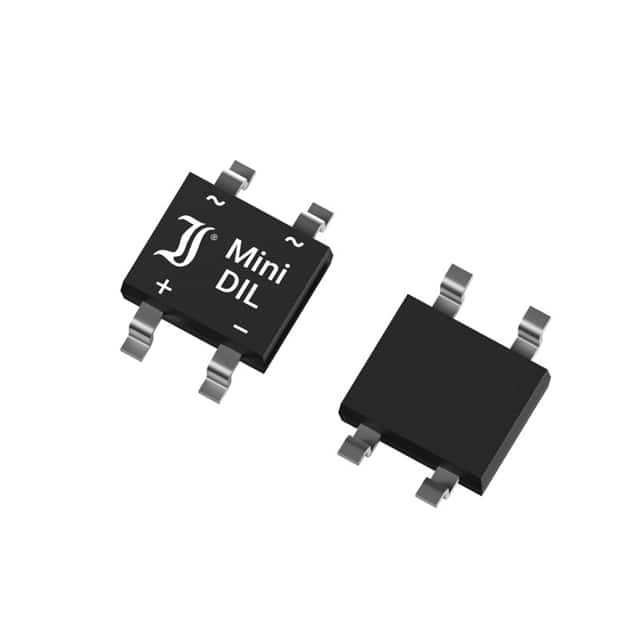

1PH BRIDGE MINIDIL 80V 0.8A
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage80 V
Average rectified current800 mA
Forward voltage1.1 VMax · 800 mA
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 800 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 800 mA |
| Voltage - Peak Reverse (Max) | 80 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-269AA, 4-BESOP |
| Supplier Device Package | TO-269AA MINIDIL SLIM |
| Other | |
| Diode Type | Single Phase |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Technology | Standard |
