View full reportTechnical parameters
| Environment and package | |
|---|---|

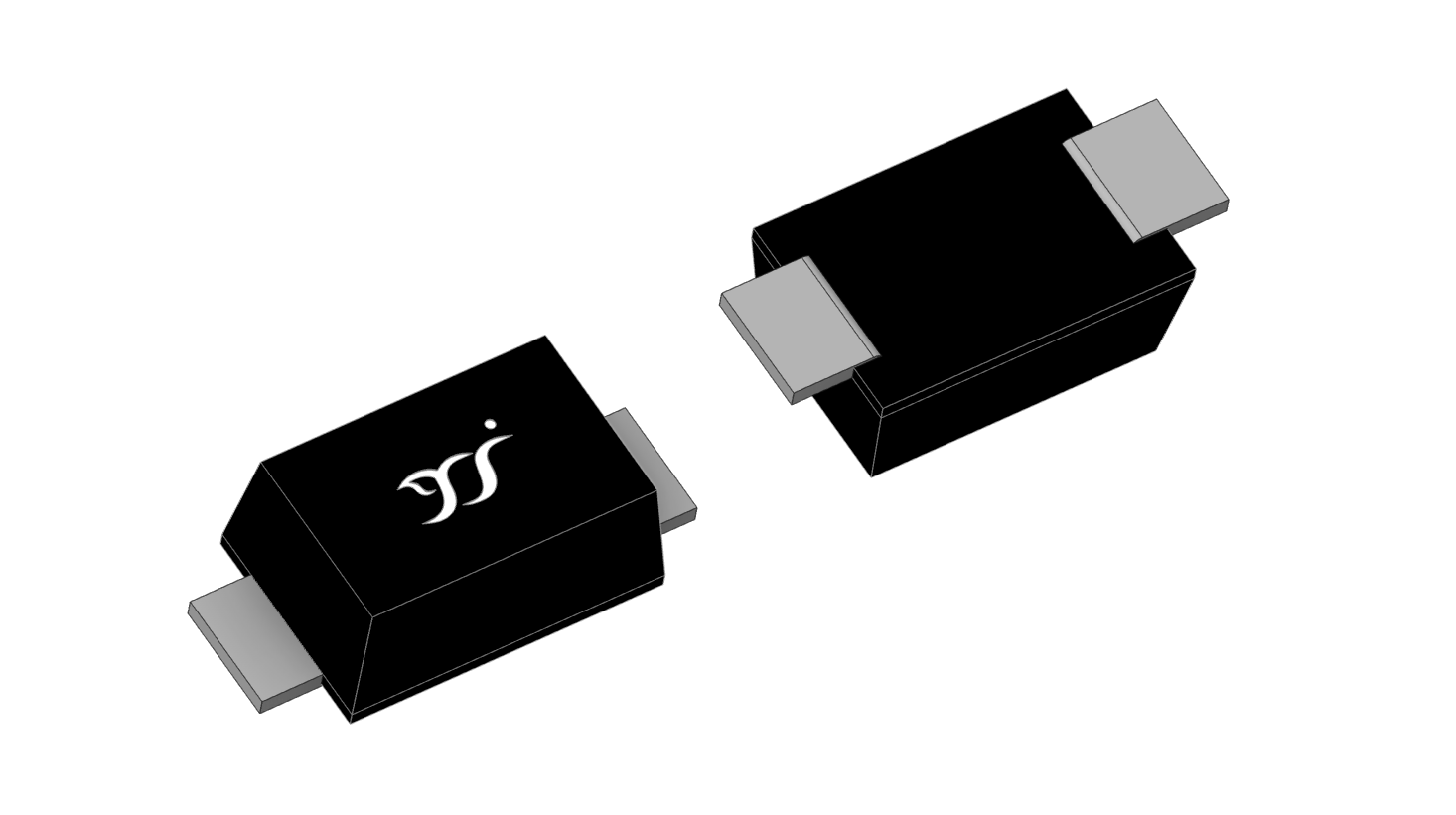

| Package | SOD-123FL |
| Other | |
| IFSM_Max(A) | 80 |
| Io_Max(A) | 3 |
| IR@25℃IR(uA) | 1 |
| Rated lo(A) | 3 |
| Status | Active |
| Tj（℃） | -55～+175 |
| VF_Max(V) | 0.8 |
| VRM_Max (V) | 100 |
Documents
DatasheetDatasheet · 241.6 KB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 304.6 KB · 2026-09-23
