View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current1.5 A
Forward voltage1.15 VMax · 1.5 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1.5A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 1.5 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

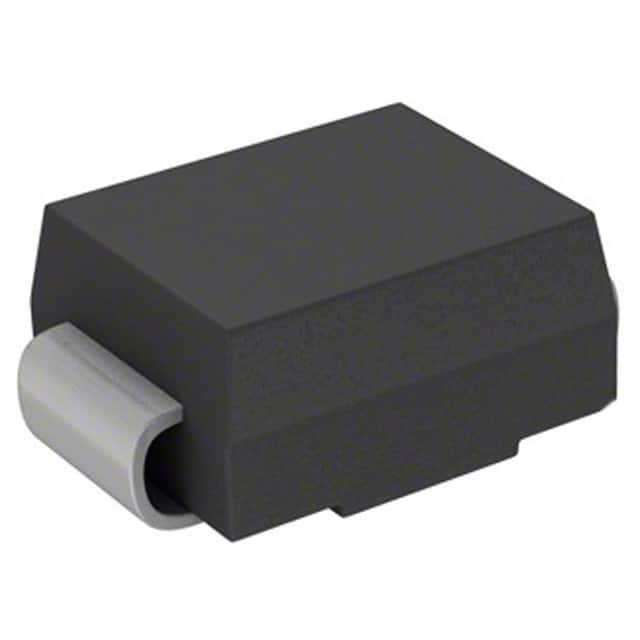

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Other | |
| Base Product Number | S2M |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | Diodes Incorporated |
| Product Status | Discontinued at Digi-Key |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
Documents
No documents are linked to this part yet.
