Taiwan Semiconductor CorporationTaiwan, China

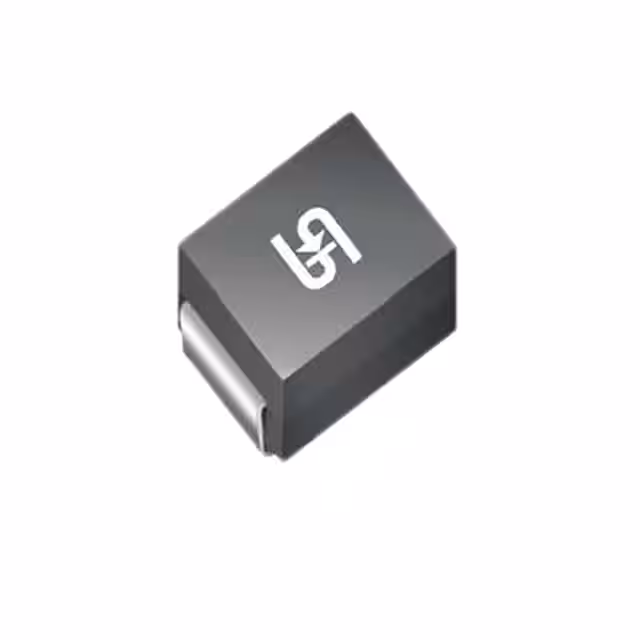

DIODE GEN PURP 600V 12A DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current12 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 12A |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Other | |
| Base Product Number | S12J |
| Capacitance @ Vr, F | 78pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
