RiedonUnited States

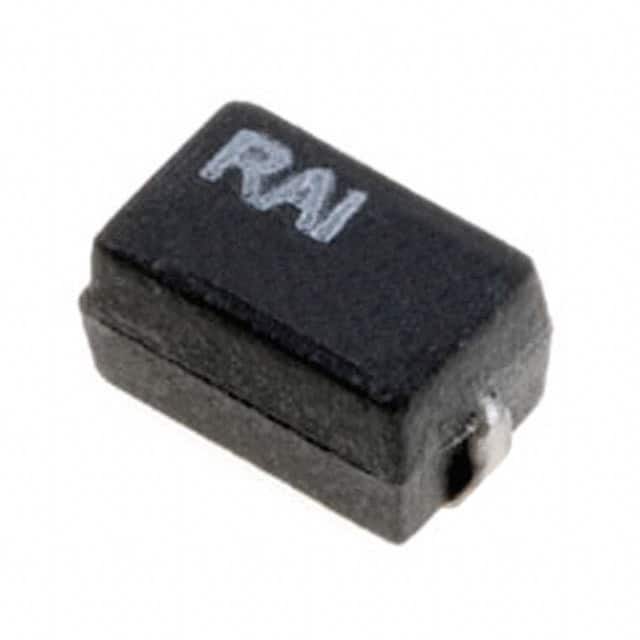

RES 0.36 OHM 5% 1/2W 1913
All alternatives
View full reportTechnical parameters
Key specs
Resistance360 mΩ
Tolerance5 %
Power500 mW
| Power | |
|---|---|
| Power (Watts) | 0.5W, 1/2W |
| Environment and package | |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Operating Temperature | -55°C~275°C |
| Package | Tape & Reel (TR) |
| Package / Case | 1913 J-Lead |
| Size / Dimension | 0.189" L x 0.130" W (4.80mm x 3.30mm) |
| Supplier Device Package | - |
| Temperature Coefficient | - |
| Other | |
| Composition | Wirewound |
| Failure Rate | - |
| Features | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety |
| Mfr | Riedon |
| Number of Terminations | 2 |
| Product Status | Active |
| Resistance | 360 mOhms |
| Series | S |
| Tolerance | ±5% |
Documents
No documents are linked to this part yet.
