Century Spring CorpUnited States

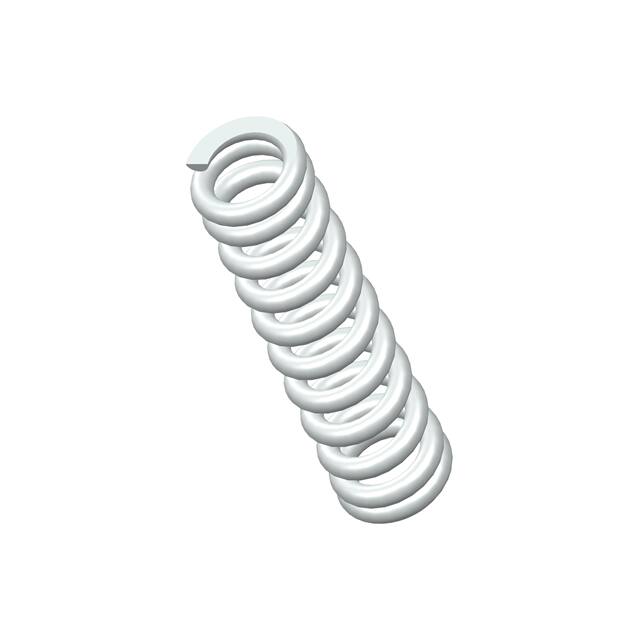

COMP O=.328,L=1.31,W=.062 HD
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.204" (5.18mm) |
| Diameter - Outside | 0.328" (8.33mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 1.310" (33.27mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 109.0 lbs/in |
| Series | - |
| Wire Diameter | 0.062" (1.57mm) |
Documents
No documents are linked to this part yet.
