Century Spring CorpUnited States

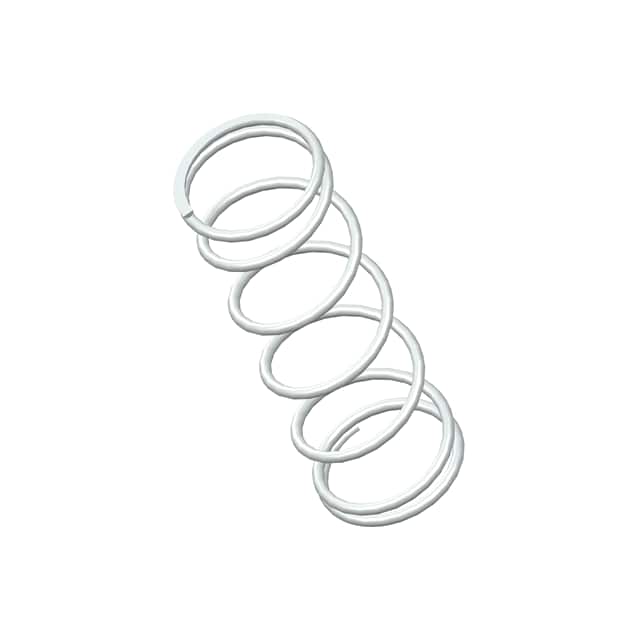

COMP O= .500,L= 1.50,W= .038
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.424" (10.77mm) |
| Diameter - Outside | 0.500" (13.97mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 1.500" (38.10mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 5.0 lbs/in |
| Series | - |
| Wire Diameter | 0.038" (0.97mm) |
