RW1S5CAR080JT
OhmiteUnited States

RW1S5CAR080JT

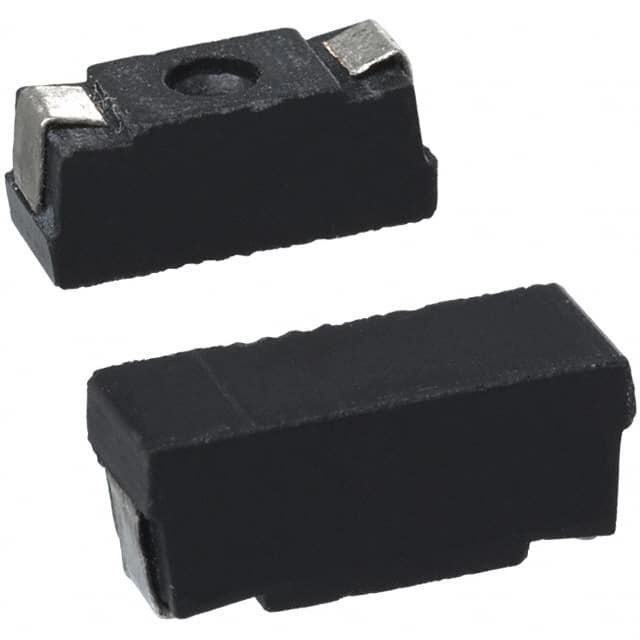

ActiveChip Resistor - Surface Mount

RES 0.08 OHM 5% 1.5W J LEAD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance80 mΩ
Tolerance5 %
Power1.5 W
Power
Power (Watts)1.5W
Environment and package

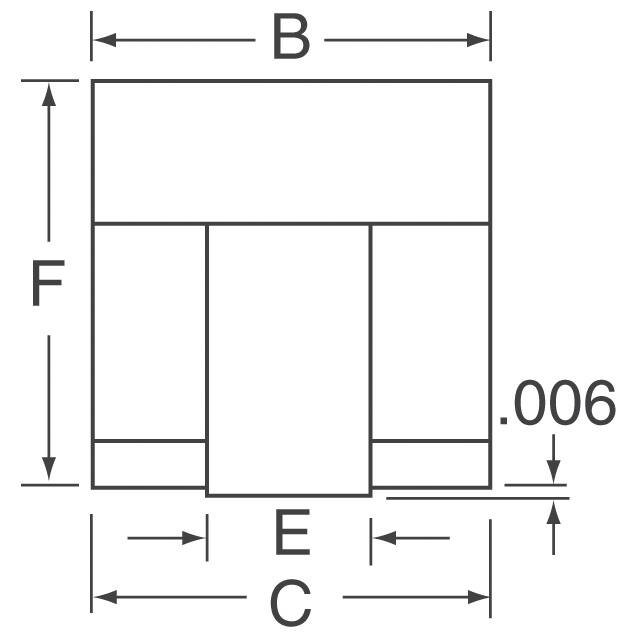

Height - Seated (Max)0.164" (4.17mm)
Operating Temperature-55°C~150°C
PackageTape & Reel (TR)
Package / Case3916 J-Lead
Size / Dimension0.394" L x 0.159" W (10.01mm x 4.04mm)
Supplier Device PackageSMD J-Lead, Pedestal
Temperature Coefficient-
Other
CompositionWirewound
Failure Rate-
FeaturesCurrent Sense
MfrOhmite
Number of Terminations2
Product StatusActive
Resistance80 mOhms
SeriesRW
Tolerance±5%

Documents

No documents are linked to this part yet.
