RW1S0BAR010F
OhmiteUnited States

RW1S0BAR010F

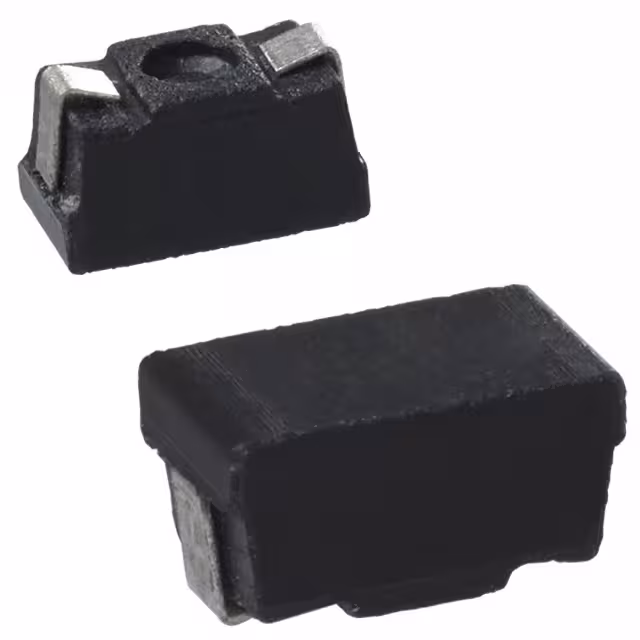

ActiveChip Resistor - Surface Mount

RES 0.01 OHM 1% 1W J LEAD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance10 mΩ
Tolerance1 %
Power1 W
Power
Power (Watts)1W
Environment and package
Height - Seated (Max)0.141" (3.58mm)
Operating Temperature-55°C~150°C
PackageBulk
Package / Case2512 J-Lead

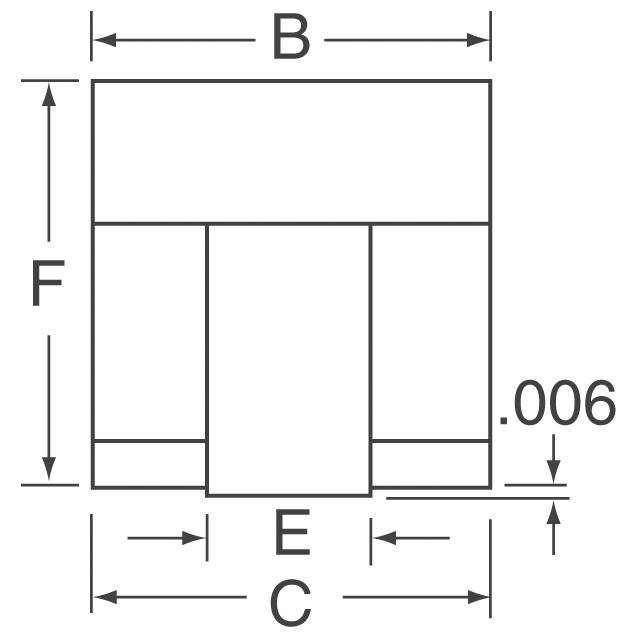

Size / Dimension0.246" L x 0.136" W (6.25mm x 3.45mm)
Supplier Device PackageSMD J-Lead, Pedestal
Temperature Coefficient-
Other
CompositionWirewound
Failure Rate-
FeaturesCurrent Sense
MfrOhmite
Number of Terminations2
Product StatusActive
Resistance10 mOhms
SeriesRW
Tolerance±1%

Documents

No documents are linked to this part yet.
