C&KUnited States

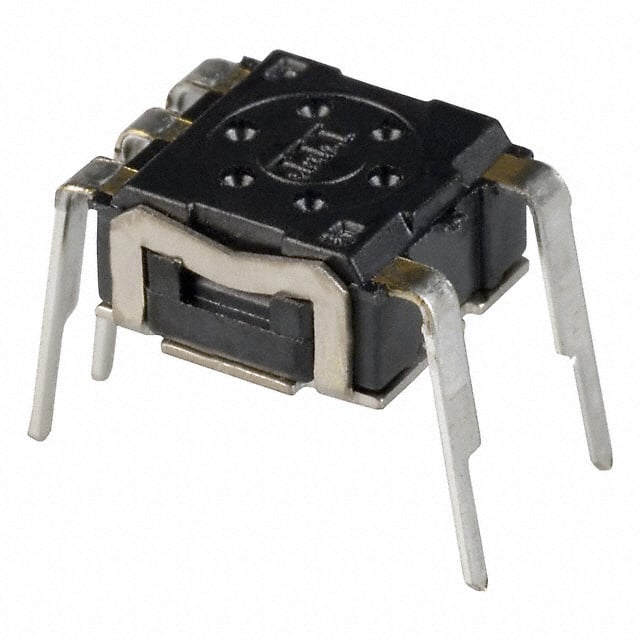

SWITCH ROTARY DIP HEX 100MA 30V
All alternatives
View full reportTechnical parameters
Key specs
Current rating100 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 100mA |
| Voltage Rating | 30VDC |
| Environment and package | |
| Height Above Board | - |
| Mounting Type | Through Hole, Reverse |
| Operating Temperature | -25°C~85°C |
| Package | Bag |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Contact Material | Bronze |
| Electrical Life | - |
| Features | - |
| Length | 0.291" (7.40mm) |
| Mechanical Life | 20,000 Steps |
| Mfr | C&K |
| Number of Positions | 16 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Obsolete |
| Series | RTE |
| Termination Style | PC Pin |
| Washable | No |
