C&KUnited States

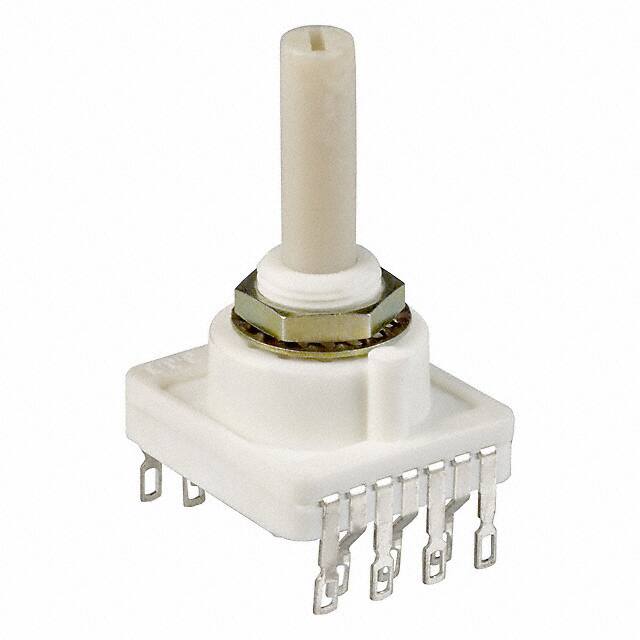

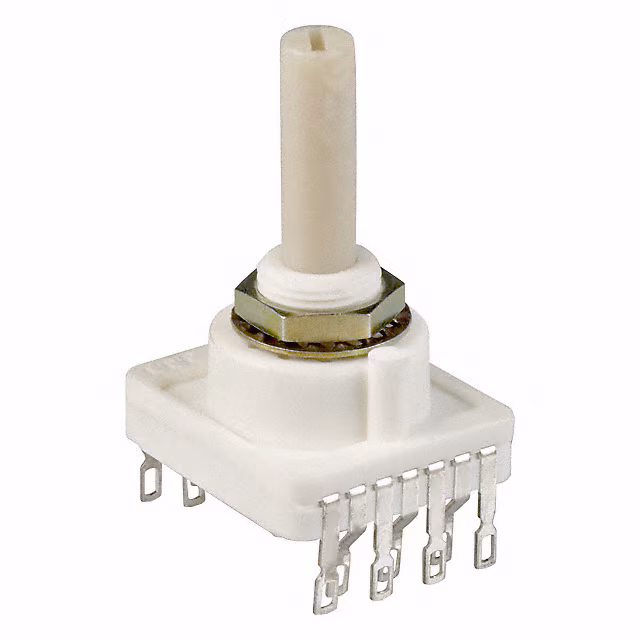

SWITCH ROTARY 6POS 150MA 60V
All alternatives
View full reportTechnical parameters
Key specs
Current rating150 mAMax
Voltage rating60 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 150mA (AC/DC) |
| Voltage Rating - AC | 60 V |
| Voltage Rating - DC | 60 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 10.20mm Dia |
| Other | |
| Actuator Length | 25.00mm |
| Actuator Type | Round (5.9mm Dia) |
| Angle of Throw | 30° |
| Circuit per Deck | DP6T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting (BBM) |
| Depth Behind Panel | 18.70mm |
| Features | - |
| Index Stops | Fixed |
| Mfr | C&K |
| Number of Decks | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 6 |
| Product Status | Obsolete |
| Series | RTA |
| Termination Style | Solder Lug |
Documents
No documents are linked to this part yet.
