Richtek USA Inc.Taiwan, China

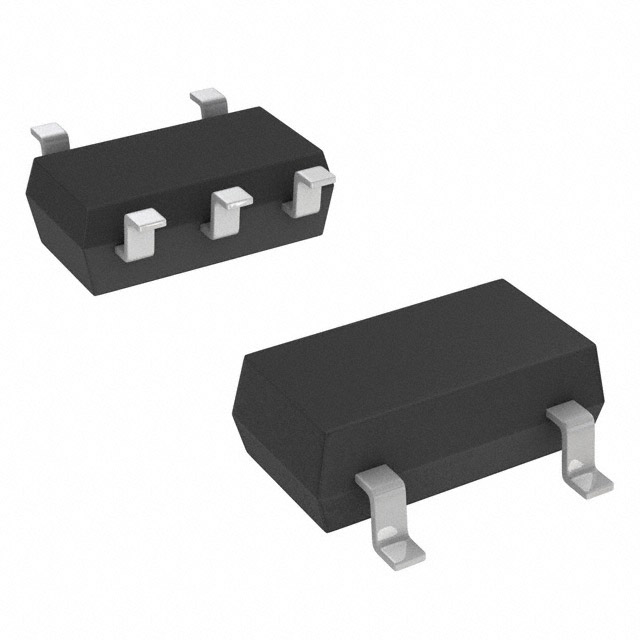

IC LED DRVR RGLTR PWM TSOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Outputs1
Output current per channel100 mAMax
Input voltage2.7 ~ 5.5 V
| Power | |
|---|---|
| Current - Output / Channel | 100mA |
| Voltage - Output | 15V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.7V |
| AC and DC characteristics | |
| Frequency | 1.2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Other | |
| Applications | Backlight, Camera Flash |
| Base Product Number | RT9284 |
| Dimming | PWM |
| Internal Switch(s) | Yes |
| Mfr | Richtek USA Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | - |
| Topology | - |
| Type | DC DC Regulator |
