Runic TechnologyChina

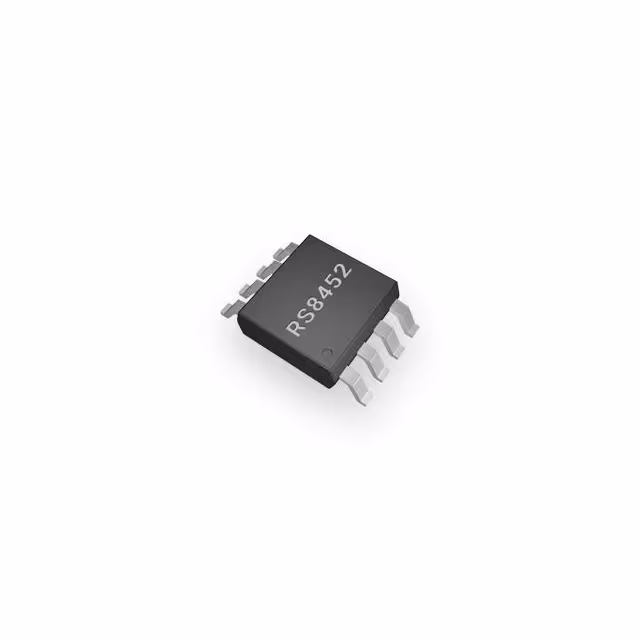

IC CMOS 2 CIRCUIT 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage5 ~ 36 V
Gain bandwidth product8 MHzTyp
Input offset voltage1.5 mVTyp
Quiescent current3 mATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 150 mA |
| Current - Supply | 3mA (x2 Channels) |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 5 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 8 MHz |
| Slew Rate | 5V/µs |
| Voltage - Input Offset | 1.5 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | CMOS |
| Mfr | Runic Technology |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
