OptiFuseUnited States

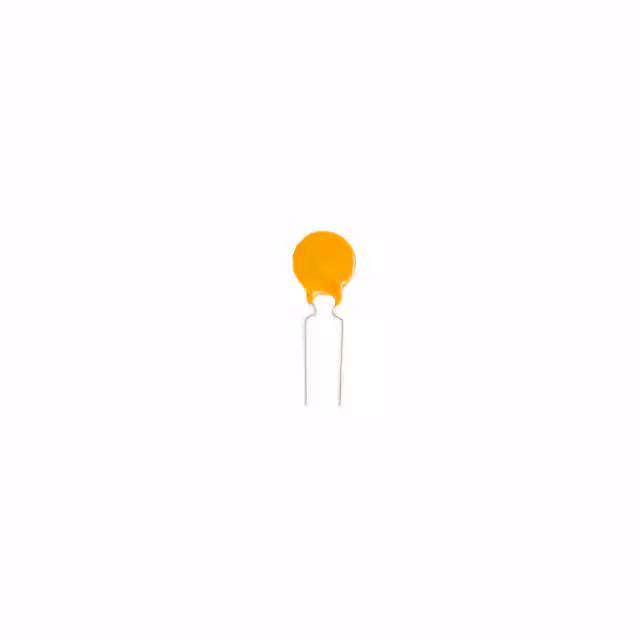

PTC RESET FUSE 30V 500MA RADIAL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Max | 40 A |
| Current - Trip (It) | 900 mA |
| Voltage - Max | 30V |
| Environment and package | |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Other | |
| Approval Agency | cULus |
| Base Product Number | RS30HT |
| Lead Spacing | 0.201" (5.10mm) |
| Mfr | OptiFuse |
| Product Status | Active |
| Ratings | - |
| Resistance - Initial (Ri) (Min) | 480 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.1 Ohms |
| Series | RS30HT |
| Thickness (Max) | - |
| Time to Trip | 2.5 s |
| Type | Polymeric |
