MEAN WELL USA Inc.Taiwan, China

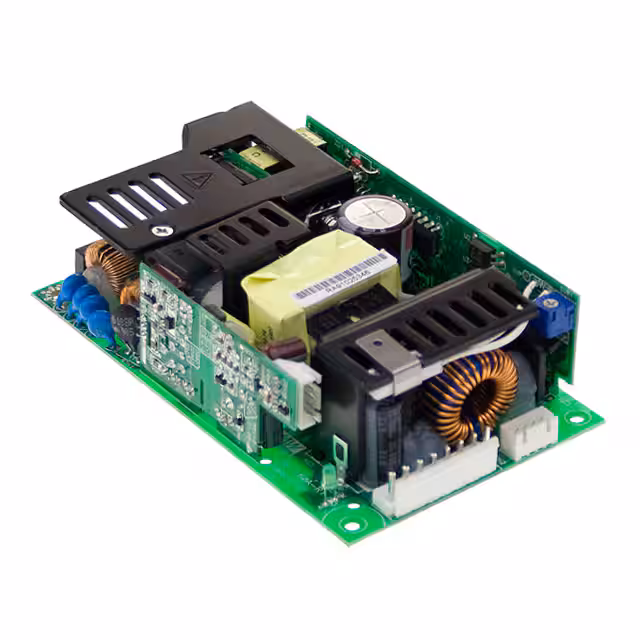

AC/DC CONVERTER 48V 110W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage48 V
Output current2.3 AMax
Power110 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.3 A |
| Power (Watts) | 110W (156W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) |
| Other | |
| Applications | Household Appliances, Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Base Product Number | RPS-160 |
| Efficiency | 88% |
| Features | Adjustable Output, Universal Input |
| Mfr | MEAN WELL USA Inc. |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | RPS-160 (160W) |
| Type | Open Frame |
