Recom PowerAustria

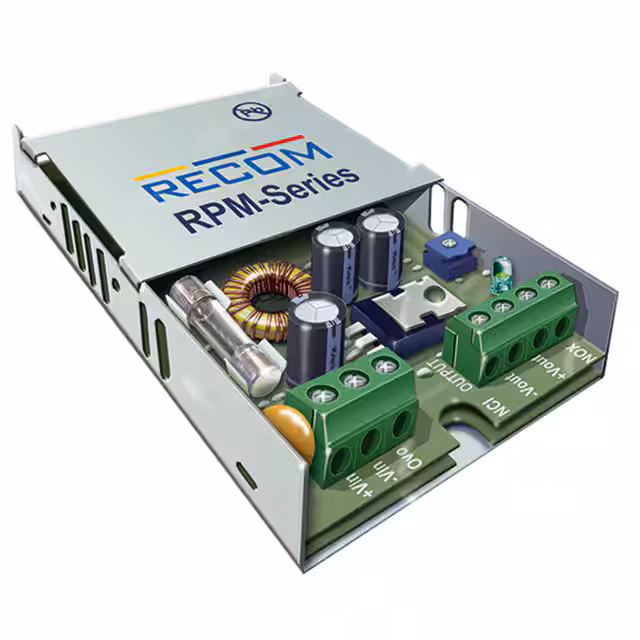

DC/DC CONVERTER 3.3V 20W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 75 V
Output voltage3.3 V
Output current5.5 AMax
Power20 WMax
| Power | |
|---|---|
| Current - Output (Max) | 5.5A |
| Power (Watts) | 20W |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | 4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | RPM20-483.3 |
| Efficiency | - |
| Mfr | Recom Power |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | POWERLINE Power Modules (20W) |
| Type | Enclosed |
