Samtec Inc.United States

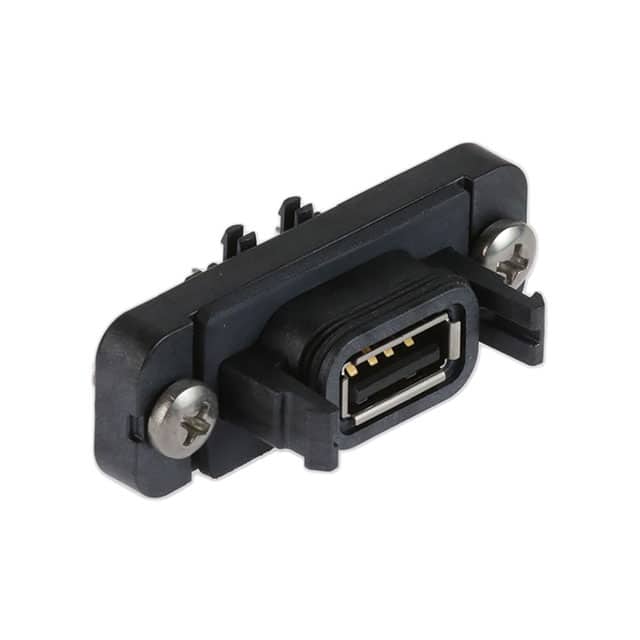

RECTANGULAR PANEL BOARD MOUNT
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderFemale
Current rating4.2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4.2A per Contact |
| Voltage - Rated | - |
| Environment and package | |
| Mounting Feature | Flange, Vertical |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -20°C~80°C |
| Package | Tube |
| Other | |
| Base Product Number | RPBU-01 |
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Features | - |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | - |
| Mating Cycles | - |
| Mfr | Samtec Inc. |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Product Status | Active |
| Series | Acclimate™ RPBU |
| Shell/Shielding Material | - |
| Shielding | Unshielded |
| Specifications | - |
| Termination | Solder |
